Swimming Pool Kit Heaters

At Pool Warehouse we carry several different styles of swimming pool kit heaters and spa heaters all manufactured by Hayward.  Whether your building a brand new swimming pool or replacing an existing heater for your pool kit or spa, we’ve got one to meet your needs.  We offer the Hayward Universal H-Series Low NOx, the Hayward HeatPro and the Hayward Spa Heater.

 These swimming pool heaters can be purchased separately or added to inground pool kits sold by Pool Warehouse!

__________________________________________________________________________________________________________________

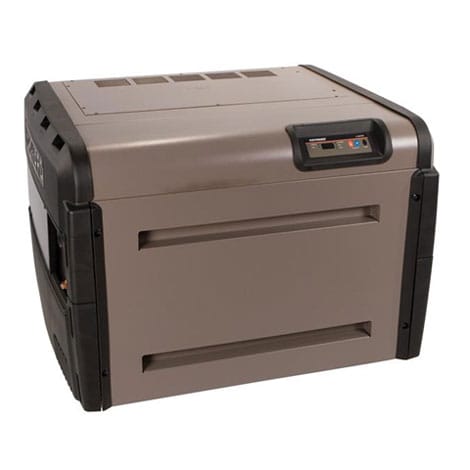

Hayward Universal H-Series Low NOx Swimming Pool Kit Heaters

Hayward Universal H-Series Low NOx heater continues to set Hayward’s standard of energy efficient products. Environmentally friendly it has an 83%-84% industry leading thermal efficiency and complies with all current California and Texas air quality emission standards. The low NOx emission makes it a perfect choice for the environmentally concerned pool owner. The H-Series is engineered with an insulated Fire tile Combustion Chamber—this traps heat unlike older forms of insulation delivering the highest degree of performance from every BTU. Available in 250, 000, 350,000 and 400,000 BTUs, the Universal H-Series heater can raise the temperature of an 800 gallon pool 30 degrees in less than an hour—you’ll feel the benefits the moment you step into the water. The Hayward Universal H-Series Low NOx can be added to inground pool kits sold by Pool Warehouse!

Adding to your ease and pleasure, the H-Series has an exclusive silicon nitride ignition and a digital LED control panel. The LED panel maintains water temperature and monitors heater performance for added convenience and maximum comfort with minimum effort. The ignition system delivers dependable lighting and reliable operations – every time – with just a touch of a button. And once you fire up those BTUs, the H-Series Heater fires up its advanced Finn Pate™ Heat Exchanger to chill your pool to the temperature of your choice. Its cupro nickel heat exchanger provides corrosion resistance and erosion protection making it the perfect selection for salt based pools.

TO BUY THE HAYWARD UNIVERSAL – SIMPLY CLICK: SWIMMING POOL KIT HEATER

__________________________________________________________________________________________________________________

Hayward HeatPro Inground Swimming Pool Kit Heaters

The Hayward HeatPro Inground Pool Heater is a high-efficiency heater, gives you the ideal water temperature while using 80% less energy than natural gas heaters.  It offers an alternative way to heat your pool that is safe, reliable, and energy efficient.

HeatPro takes the heat from the surrounding air and uses it to warm the water in your pool eliminating wasted energy.  Its digital LED control panel provides an easy-to-read digital temperature display, and shows diagnostic codes for quick identification of components that might need service.  With its precision electronic temperature control, the perfect water temperature is constantly maintained, providing continued energy savings.

TO BUY THE HAYWARD HEATPRO – SIMPLY CLICK: SWIMMING POOL HEATER

__________________________________________________________________________________________________________________

Hayward Spa Heater

The Hayward spa heater contain all of the sophisticated features and capabilities of heaters twice their size and the convenience of simple storage in compact spaces – even under spa skirts or steps. And like all Hayward heaters, they are easy to install and maintenance friendly.
Hayward Spa Heater Features: 304 stainless steel tank, 304 stainless steel threaded head, safety sensor electric heating element, Service-ease design gives simple access to internal controls, Heater on indicator light and UPS Shippable.

TO BUY THE HAYWARD SPA HEATER – SIMPLY CLICK: SPA HEATER

__________________________________________________________________________________________________________________

Hayward HeatPro Buying Guide & BTU Ingormation

Heating Rate BTU/hr
	HP600 230V	HP1100 230V	HP2100* 230V	HP3100 230V
80 °F amb., 80 °F water, 80% R.H., 45 GPMHP600	81,000	116,000	116,000	116,000
80 °F amb., 80 °F water, 63% R.H., 45 GPMHP600	60,000	100,000	100,000	100,000
50 °F amb., 80 °F water, 63% R.H., 45 GPMHP600	41,000	69,000	69,000	73,000

HeatPro Buying Guide
Model Number	C.O.P.	Water Flow (GPM) Min	Water Flow (GPM) Max	Fan	Compressor Size	Dimensions	Weight
HP600	5.4 / 3.9	20	75	1/2 hp	3.25 hp	28.5″ (dia) x 40.5″ (h)	190
HP1100	4.8 / 3.8	30	75	1/2 hp	5 hp	28.5″ (dia) x 40.5″ (h)	239
HP2100	4.8 / 3.8	30	75	1/2 hp	5 hp	28.5″ (dia) x 40.5″ (h)	239
HP2100TCO	4.8 / 3.8	30	75	1/2 hp	5 hp	28.5″ (dia) x 40.5″ (h)	239
HP3100	4.7 / 3.8	30	75	1/2 hp	5 hp	32″ (w) x 37″ (dia) x 33″ (h)	300

HeatPro Buying Guide for In Ground Pools Continued
Model Number	BTU Size	Electrical Power	Electrical Power	Electronic Temp. Control	Max Water Temp	Supply Circuit Ampicity (Fuse)
HP600	60,000	15.9	3280	No	104o	50
HP1100	100,000	31	6900	No	104o	50
HP2100	100,000	31	6900	Yes	104o	50
HP2100TCO	100,000	31	6900	Yes	104o	50
HP3100	100,000	31	6200	Yes	104o	50

Hayward Universal Buying Guide & BTU Information

Model Number	BTU Input	Gas Type	Heater Width	Ctn. Qty.	Ctn. Width
H250FDN	250,000	Natural	28″	1	165 lbs.
H250FDP	250,000	Propane	28″	1	165 lbs.
H350FDN	350,000	Natural	33 1/4″	1	195 lbs.
H350FDP	350,000	Propane	33 1/4″	1	195 lbs.
H400FDN	400,000	Natural	36 1/2″	1	197 lbs.
H400FDP	400,000	Propane	36 1/2″	1	197 lbs.
High altitude versions available (certified up to 10,000 ft. above sea level)

Hayward Spa Heater Technical Information

CSPA XI Electric Spa Heaters
Model No	KW	Voltage	Pipe Size	Ctn.Qty	Ctn. Weight
CSPAXl55	5.5	240	1 1/2″	1	14lbs.
CSPA Xl11	11	240	1 1/2″	1	14lbs.

__________________________________________________________________________________________________________________

Questions About Swimming Pool Kit Heaters?

If you have questions about our Hayward Swimming Pool Heaters please feel free to give us a call at 1-800-515-1747 or send us an email, [email protected].

At Pool Warehouse, We Know Swimming Pools!
