Swimming Pool Plumbing Diagrams

Swimming Pool Plumbing Diagrams

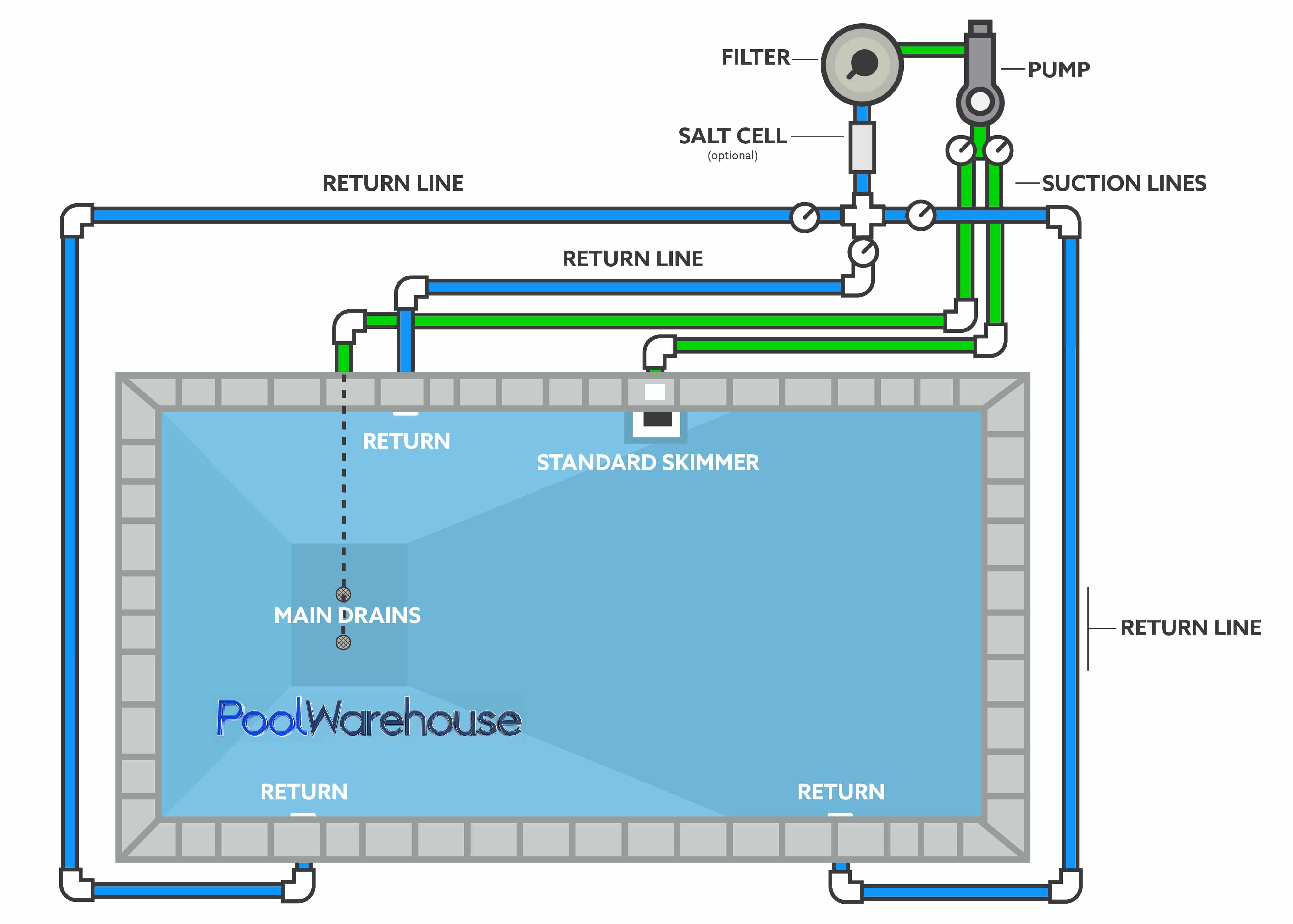

1 Standard Skimmer with 2 Main Drains & 3 Returns

One Standard Skimmer Plumbing Pool Diagram
Swimming Pool Main Drains must be installed in accordance with the VIRGINIA GRAEME BAKER POOL AND SPA SAFETY ACT and all applicable ASME/ANSI safety standards. *American National Standards Institute and published by the American Society of Mechanical Engineers.

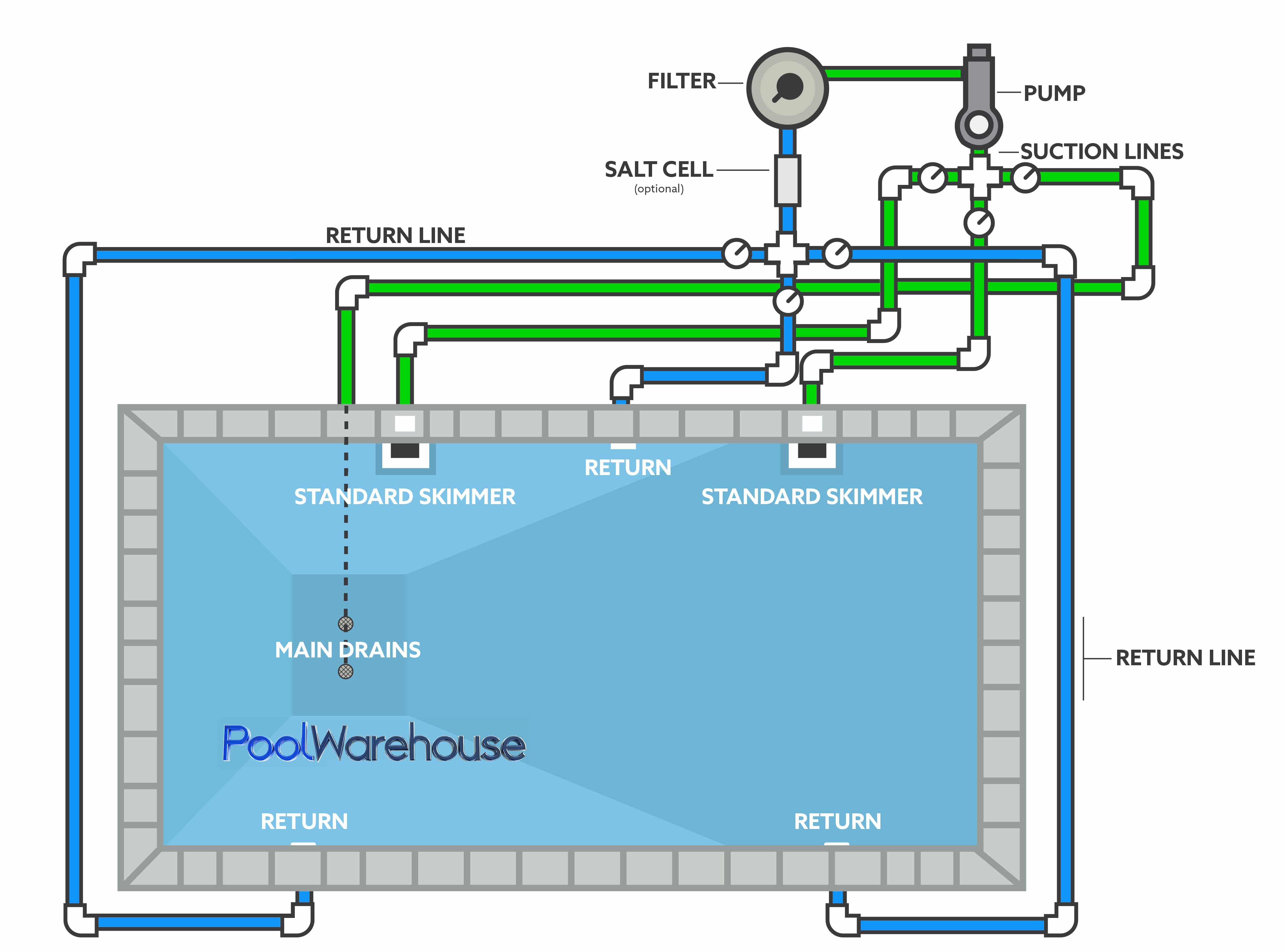

2 Standard Skimmers with 2 Main Drains & 3 Returns

Two Standard Skimmer Plumbing Pool Diagram
Swimming Pool Main Drains must be installed in accordance with the VIRGINIA GRAEME BAKER POOL AND SPA SAFETY ACT and all applicable ASME/ANSI safety standards. *American National Standards Institute and published by the American Society of Mechanical Engineers.

1 Aqua Genie Skimmer

One Aqua Genie Skimmer Plumbing Pool Diagram

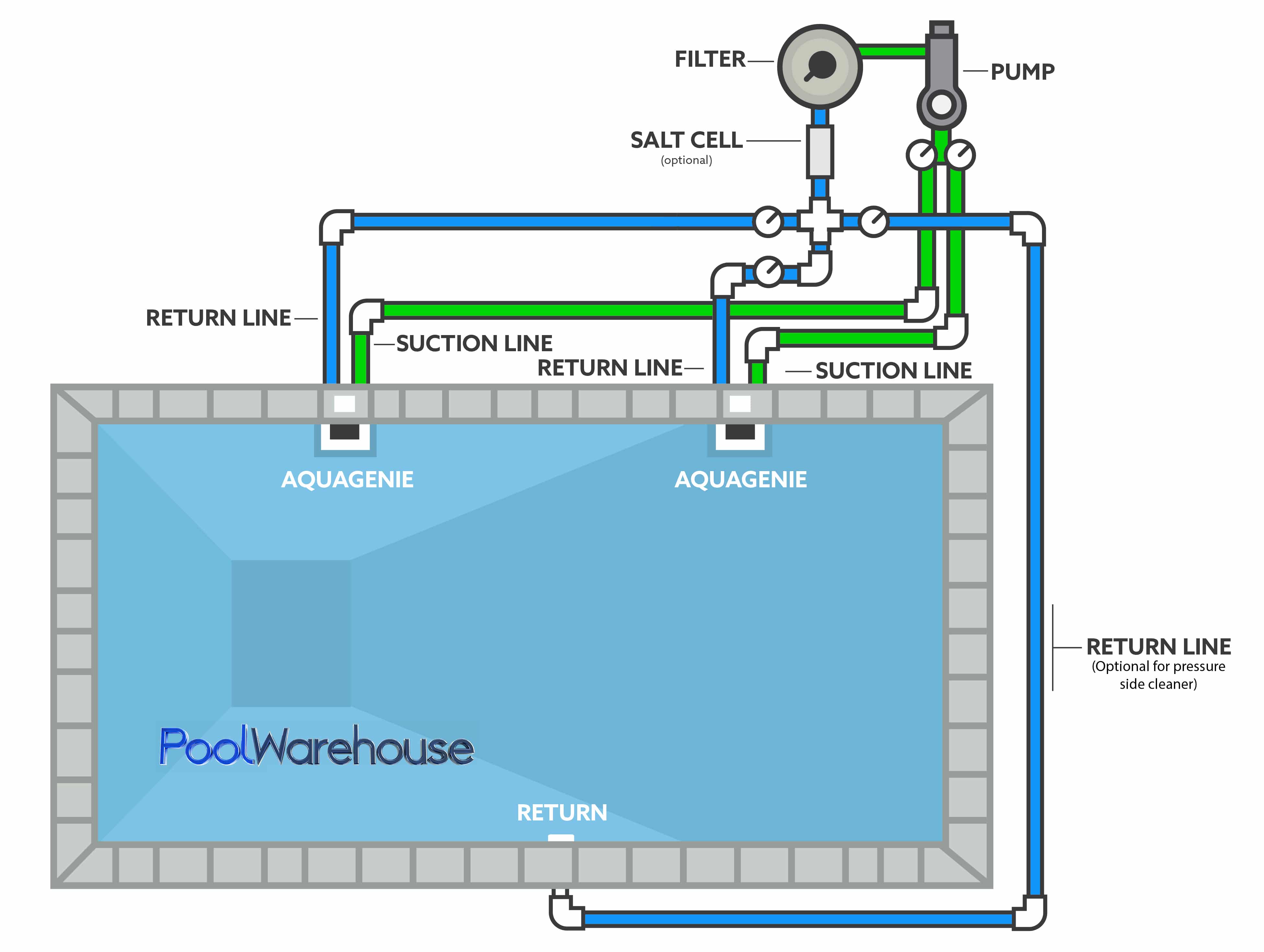

2 Aqua Genie Skimmers

Swimming Pool Plumbing Diagrams
Swimming Pool Main Drains must be installed in accordance with the VIRGINIA GRAEME BAKER POOL AND SPA SAFETY ACT and all applicable ASME/ANSI safety standards. *American National Standards Institute and published by the American Society of Mechanical Engineers.

Swimming Pool Plumbing Diagrams

*These plumbing diagrams are only examples. The builder will need to determine how much Schedule 40 PVC is needed (based on distance to pool from equipment pad) and exactly how many fittings (based on equipment in your package and desired control) are needed to complete your project.
